One of four large projection “Billboards” displaying movie trailers and promotional content. Powered by 2 HD 10k Christie projectors and fed via fiber from the AV head end room.
Another large projection “Billboard” on the Casino floor. The video feed to each projector is easily changed via Control-Point’s automation software running on wireless tablet PC’s.
The system is capable of showing all in house channels including 16 DirecTv feeds, movie trailers, promotional content, horse racing, a live stage feed and music videos.

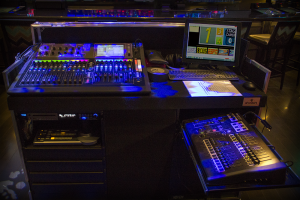

The front of house mix position features an Allen and Heath 24 input digital console, a touchscreen PC running Leprecon lighting control software as well as Control-Point for AV head end control. Also installed is a Leprecon lighting control surface, as well as a Sony PTZ camera controller.
The audio system is comprised of a pair of EAW QX full range boxes and four EAW SBK250 subwoofers in a tri-amplified configuration as well as an EAW centerfill speaker.
The casino stage and bar is illuminated by 4 Martin moving head LED fixtures, and 10 RGBW PARs.
Surrounding the stage are six 60 inch LED Tv’s and above is a blended and warped VuWall projection installation powered by 3 HD 10k Christie projectors.
The bar staff uses a Control-Point tablet to change the VuWall feeds and arrangement as well as the TV Feeds and overhead and PA audio sources and volume.
Skybox sports bar glass projection surface powered by two Christie Laser projectors.
Interior view of the Skybox Sports Bar.
Each Skybox Sports Bar booth features a guest controlled TV.
Digital menu boards are used for five of the facilities dining venues. Racing concession uses Brightsign® local network players while the Casino dining area menus are modulated and encoded CastNet® feeds.
Upper Level Simulcast area and grandstand. Simulcast and live racing feeds are managed on the 131 network controlled TV’s via Control-Point’s automation software. RF signal distribution is accomplished via Z-Band’s video over cat-5 system.
The racing entrance with a Community Speaker above.
Outlining the trackside of the building’s roof are Community Speakers directed towards the racing apron.
Community Speaker roof mount detail.
A view of the Judges’, Officials’ and Announcer’s booths with Community Speakers above.
The Simulcast Theater houses 14 – 55 inch HD displays as well as a 2×2 Planar wall easily changed from one 110 inch feed to four unique 55 inch feeds.
